Description
|
Product Name |

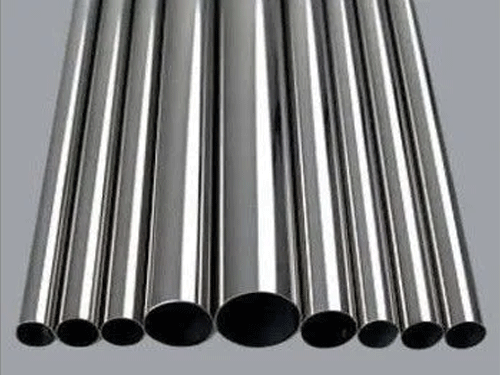

Monel alloy tube 400 |
|
Standard |
ASTM，JIS，AISI，GB，DIN，EN |
|
Outer Diameter |
6-2500mm， (3/8"-100") |
|
Thickness |
0.3-150mm，(SCH10-XXS) |
|
Delivery Condition |
Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn |
|
Technique |
Cold drawn, Cold rolled, Extrusion Tube |
|
Surfuace |
Polishing, pickling, sand blasting |
|
Test |
Water pressure test,Ultrasonic test,X-ray test,Eddy current test,Flaring and Flattening test. |
|
Package Method |
Wooden case, and Customer requirements |
|
Payment way |
T/T, L/C, can be negotitated |
|
Transportation |
Sea(FCL/LCL), airplane, express(TNT/DHL/FEDEX) |
|
Port |
Shanghai,Tianjin,Qingdao |
|
Certificate |
EN10204 3.1/3.2,Third Party Inspection Report, etc |
Chemical Composition
|
C |
Mn |
S |
Si |
Ni |
Cu |
Fe |
|
0.30 max |
2.00 max |
0.024 max |
0.50 max |
63.0 min |
28.0-34.0 |
2.50 max |
Physical Properties
|
Element |
Density |
Melting Point |
Tensile Strength |
Yield Strength (0.2%Offset) |
Elongation |
|
Monel 400 tube |
8.8 g/cm3 |
1350 °C (2460 °F) |
Psi – 80,000 , MPa – 550 |
Psi – 35,000 , MPa – 240 |
40 % |
Equivalent Grades For 400 Monel Tubes
|
GENERIC TERM |
DIN/EN |
UNS NO |
INGREDIENT |
|
MONEL400 |
2.4360 |
MONEL400 |
63Ni-32Cu-1Fe-0.1C |
