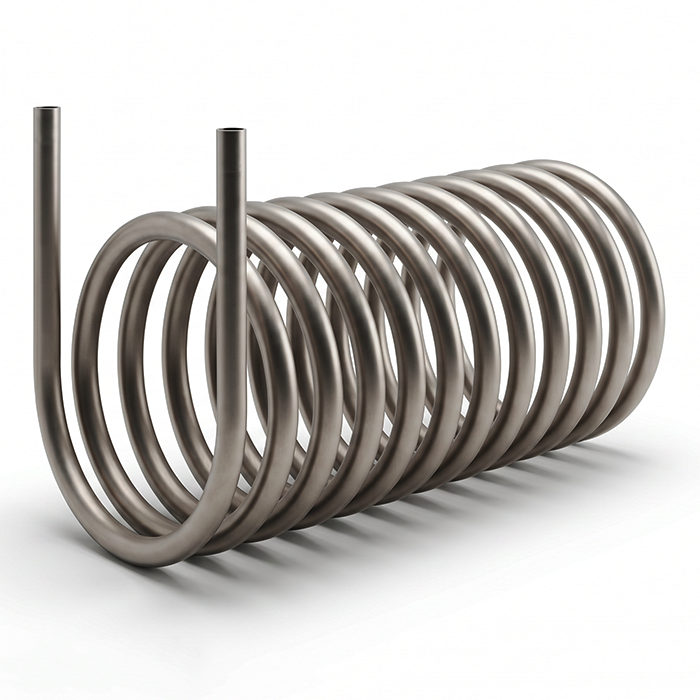

Condenser Titanium Coil - Chloride Ion Resistant

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Material Performance

1. Corrosion resistance

: it is extremely resistant to seawater, brine, salty circulating water and chlorinated chemical wastewater, effectively avoiding the pitting corrosion and crevice corrosion caused by chloride ion, and its service life is far more than that of stainless steel.

2. Mechanical property

: tensile strength ≥ 400MPa, excellent toughness, not easy to deform and crack under cold and hot alternating cycle, water impact resistance and fatigue resistance.

3. Heat exchange characteristics

: balanced heat conduction, smooth pipe wall, not easy to scale, stable condensation efficiency during long-term operation; It is non-magnetic and will not pollute the circulating medium; Applicable temperature - 40 ℃ - 180 ℃.

[ Process structure ]

The whole seamless pipe is continuously bent and formed to reduce the welding joint and the leakage risk from the root; The coil spiral spacing is uniform, which increases the contact area of cold and hot medium and improves the condensation and heat exchange efficiency; Standard groove structure of pipe orifice, suitable for flange and pipe welding installation; The finished product is 100% pressure leak detection, the pipe wall thickness is uniform, the structure is rigid, and the condenser is suitable for continuous operation in all weather.

[ Application field ]

1. Seawater circulation

: condenser heat exchange coil of seawater aquaculture and seawater desalination unit;

2. Chemical environmental protection

: salty wastewater, brine concentration, condensation and recovery equipment;

3. Refrigeration equipment

: salt-water refrigeration unit, industrial corrosion-resistant chiller condenser;

4. Marine vessels

: supporting pipe fittings of marine seawater cooling and condensing system;

5. Electroplating industry

: condensation, recovery and cooling equipment for chlorinated electroplating waste liquid.
