Mixer Selection Guide

HG/T 3796.1-2005 Mixer Types and Basic Parameters
HG/T 3796.2-2005 Mixer Shaft Diameter Series
HG/T 3796.3-2005 Paddle Mixers
HG/T 3796.4-2005 Open Turbine Mixers
HG/T 3796.5-2005 Disc Turbine Mixers
HG/T 3796.6-2005 Disc Toothed Blade Mixers
HG/T 3796.7-2005 Three-Blade Backward-Curved Mixers
HG/T 3796.8-2005 Propeller Mixers
HG/T 3796.9-2005 Plate Spiral Propeller Mixers
HG/T 3796.10-2005 Screw Mixers
HG/T 3796.11-2005 Screw Belt Mixers
HG/T 3796.12-2005 Anchor Frame Mixers

Product Introduction
Viscosity refers to the fluid's resistance to flow, measured in Pa·s. It is a crucial property, impacting the flow state during mixing processes. Mixer selection depends on the viscosity of the fluid: low viscosity (e.g., water, oils), medium viscosity (e.g., inks, toothpaste), high viscosity (e.g., gum, plastic melts), and very high viscosity (e.g., rubber compounds, molten plastics). Different impellers are suitable for various viscosity ranges.

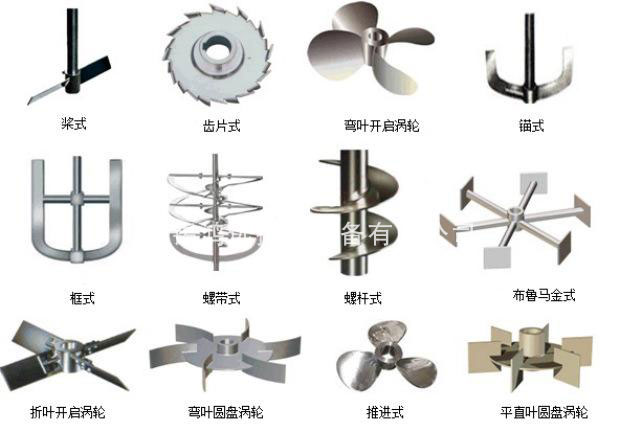

Product Types

1. Propeller Mixers: Consist of 2-3 propeller blades suitable for low viscosity liquids and suspensions with low solid particle content.

2. Turbine Mixers: Have 2-4 flat or curved blades on a horizontal disk, suitable for gas-liquid dispersion and liquid-liquid reactions where viscosity is not very high.

3. Paddle Mixers: Include flat and inclined types. Flat paddle mixers have two flat blades, while inclined ones have blades tilted at 45° or 60°, creating axial liquid flow. Suitable for low viscosity liquids and dissolving solids.

4. Anchor Mixers: The blade shape matches the vessel wall closely, minimizing dead zones. Suitable for mixing high-viscosity Newtonian fluids and pseudo-plastic fluids.

5. Screw Belt Mixers: The screw's outer diameter equals the pitch, designed for high-viscosity liquids (200-500Pa·s) and pseudo-plastic fluids, typically operated in laminar flow.

6. Magnetic Stirrers: Equipped with a closed-loop knob to monitor and adjust stirring speed automatically. Suitable for various fluids and semi-solid solutions.
