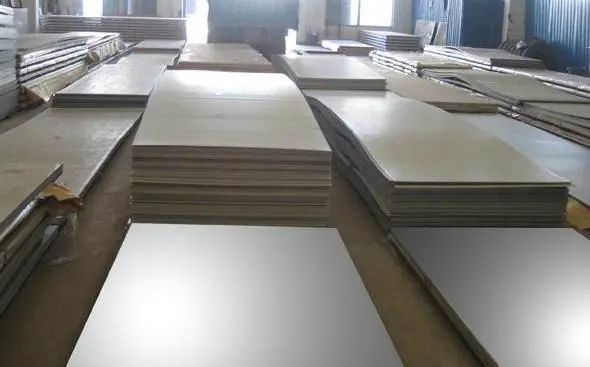

We are A World-Renowned Professional Titanium Grade 5 Ti 6al-4v Sheet & Plate Manufacturer, Providing High Quality Grade 5 6al-4v Titanium Sheets To Customers All Over The World.
titanium Grade 5 Ti 6al-4v Sheet Due to its ability to withstand extreme temperatures, good corrosion resistance and thermal stability, Grade 5 6al-4v is the most commonly used titanium grade of all titanium alloy sheets.
Dimension Show Titanium
|
Product |
Thickness(mm) |
Width(mm) |
Length(mm) |
| Titanium Foil | 0.01-0.02 | 100max | 500 max |
| 0.03-0.5 | 500max | 1000 max | |
|
Titanium Sheet |
0.5-0.8 |
800 max |
2000 max |
|
|
0.8-4 |
1000 max |
3000 max |
|
Titanium Plate |
4-8 |
2000 max |
4000 max |
|
|
8-100 |
2500 max |
6000 max |
supply Grade：Gr 1，Gr 2，Gr ,5，Gr 7，Gr 9，Gr 12
Specification: ASTM B265、 ASTMF67、ASTM F136、AMS4911、
Tolerance:acc. to specification requirement, industry standard and customized.
Chemical Components
|
N |
C |
H |
Fe |
O |
Al |
V |
Ti |
|
|
Gr 5 |
0.05 |
0.08 |
0.015 |
0.40 |
0.20 |
5.5~6.75 |
3.5~4.5 |
balance |
Mechanical Property
| Grade 5 |
Tensile strength(min) |
Yeild strength(min) |
Elongation(%) | ||
|
ksi |
MPa |
ksi |
MPa | ||
|
130 |
895 |
120 |
828 |
10 |
|
titanium Grade 5 Ti 6al-4v Sheet is widely used in aerospace, electroplating, medical, sports, vacuum coating and other fields.
