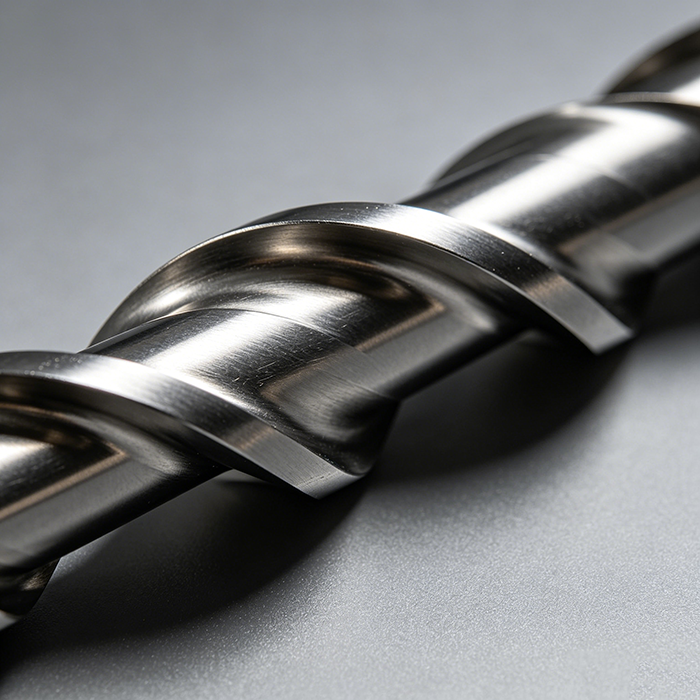

Titanium stirrer blade

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Supply status

Bending and forming, argon arc welding splicing, weld polishing smooth without burrs, overall acid pickling and passivation treatment.

[ Processing Technology ]

NC cutting of Titanium Plate → bending and shaping → positioning argon arc welding → polishing of welding seam → NDT correction → pickling and passivation of finished products.

[ Material Performance ]

TA2 pure titanium can generate a stable passive film, which can resist the corrosion of hydrochloric acid, sulfuric acid, salt mist and electroplating solution for a long time, without the risk of pitting and perforation; Low density, lighter weight than stainless steel blades, reducing load of mixing motor; No magnetism, no metal ion precipitation for high-purity reagent and electronic chemical production; Stable strength under high-temperature mixing condition, not easy to be scoured and worn by corrosive medium.

[ Process structure ]

The whole piece of Titanium Plate is bended integrally, with fewer welding points, and the risk of leakage and falling off is low; High-purity argon full welding is adopted for split spliced blade, which is firmly fused and not easy to crack due to high-speed mixing; All edges shall be chamfered and polished, without sharp edges and corners, hanging materials and caking; Pickling, passivating and sealing the surface to strengthen the corrosion resistance; It can reserve mounting holes for locking assembly with titanium spindle bolts, which is convenient for assembly and disassembly.

[ Application field ]

1. Fine chemistry

: acid-base corrosion synthesis reactor mixing accessories;

2. Hydrometallurgy and electroplating

: high-salt leaching solution and extraction solution stirring blade;

3. Lithium battery new energy

: corrosive electrolyte, precursor stirring device;

4. High-purity chemical industry of medicine

: clean and free of impurities;

5. Pickling environmental protection equipment

: acid and saline-containing waste liquid treatment agitating blade.
