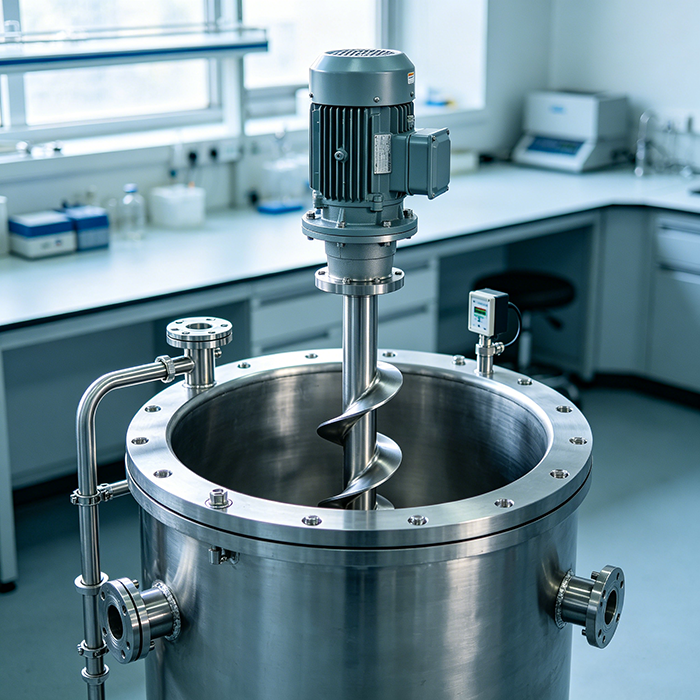

Titanium Reactor Agitator

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Supply status

Argon arc welding is integrally formed, weld joint is polished, overall acid pickling and passivation, and titanium flange and titanium fastener are provided.

[ Processing Technology ]

Blanking of titanium bar and Titanium Plate → main shaft turning → blade cutting and bending → high purity argon arc welding assembly → weld detection and correction → acid pickling and passivation → dynamic balance verification.

[ Material Performance ]

TA2 pure titanium surface forms a dense passive film, which is resistant to salt water, dilute acid, electroplating solution and organic corrosion medium for a long time, and free from pitting corrosion, rust and slag falling off and polluting materials; Light dead weight reduces the operating load of the motor; Non-magnetic, suitable for high-purity electronic chemicals and pharmaceutical intermediate production; The mechanical property is stable under high-temperature mixing condition, and the corrosion resistance of weld is the same as that of base metal.

[ Process structure ]

The main shaft and the blade are fully welded and fully fused, and there is no dead corner deposit and leakage hazard; Various paddles are suitable for mixing viscous, low viscosity and crystallized materials; Dynamic balance treatment shall be carried out for finished products, with little vibration during high-speed operation; Fine grinding of weld joint to remove burrs and prevent caking of hanging materials; The overall acid pickling passivation sealing surface improves the corrosion resistance. It can be used with titanium bushing and titanium seal.

[ Application field ]

1. Fine chemical equipment

: mixing assembly of acid-base corrosion material synthesis reactor;

2. Electroplating and hydrometallurgy

: high-salt extraction solution and leaching solution agitation device;

3. Lithium battery new energy

: corrosive electrolyte, precursor reaction stirrer;

4. Medicine and high-purity chemical industry

: clean and impurity-free separation reactor mixing accessories;

5. Pickling environmental protection industry

: mixing equipment for acid waste liquid and corrosion waste water treatment reactors.
