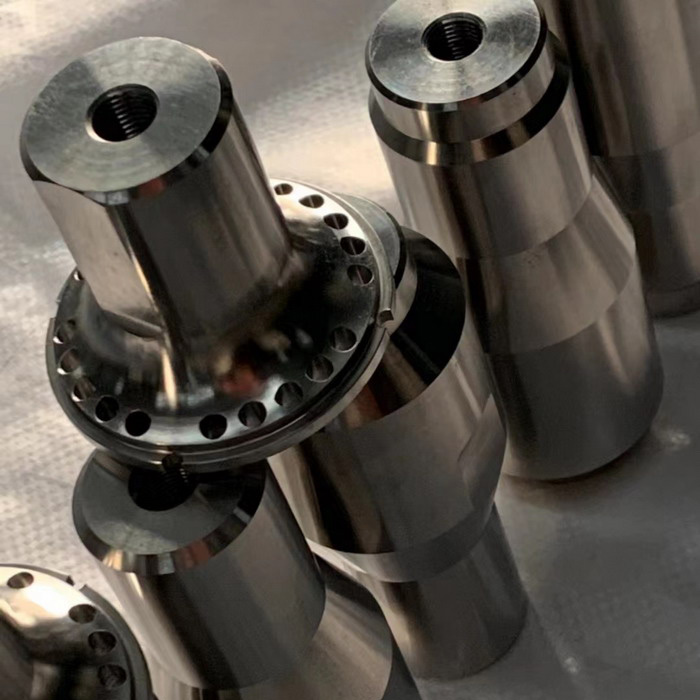

Customized titanium alloy profiled parts

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Supply status

Rough machining of workblank, fine turning and fine milling, mirror polishing, pickling and passivation of various surfaces, without burrs and processing defects.

[ Processing Technology ]

Blanking of titanium rod/Titanium Plate/titanium forging blank → CNC milling/five-axis machining/forging → drilling, tapping, bending and welding → deburring cleaning → passivation/polishing → dimensional flaw detection.

[ Material Performance ]

TA2 pure titanium surface generates dense passive film, which can resist the corrosion of brine, dilute acid and seawater for a long time, and will not rust and separate impurities; TC4 titanium alloy has high tensile strength, impact resistance and fatigue resistance, and stable performance at high temperature of 400 ℃ for a long time. Low material density, significant weight reduction effect, non-magnetic, non-interference with nuclear magnetic, sensor and vacuum electronic equipment, and biocompatibility of medical grade products.

[ Process structure ]

NC multi-shaft equipment is used to process complex special-shaped curved surface, special-shaped cavity and eccentric porous structure, which is integrally formed to reduce splicing leakage risk; Refined internal grain of forging parts, dense structure and stronger pressure bearing; Special titanium welding process shall be adopted for welding parts, and the corrosion resistance of welding seam shall meet the standard; The finished products are subject to precise dimensional inspection and non-destructive testing to eliminate internal sand holes and microcracks. Mirror surface, matte surface and passivation surface protection can be provided as required.

[ Application field ]

1. Chemical anti-corrosion equipment

: special-shaped titanium mixing blade, non-standard titanium cavity, special-shaped pipe joint;

2. Marine and seawater equipment

: special supports for marine instruments and special load-bearing members for seawater equipment;

3. Vacuum semiconductor industry

: non-magnetic special-shaped cavity, high-temperature vacuum tooling special-shaped parts;

4. Medical devices

: medical special-shaped implantation accessories, minimally invasive equipment special-shaped precision structural parts;

5. Aviation and new energy

: lightweight high-strength special-shaped connection support, anti-corrosion non-standard tooling.
