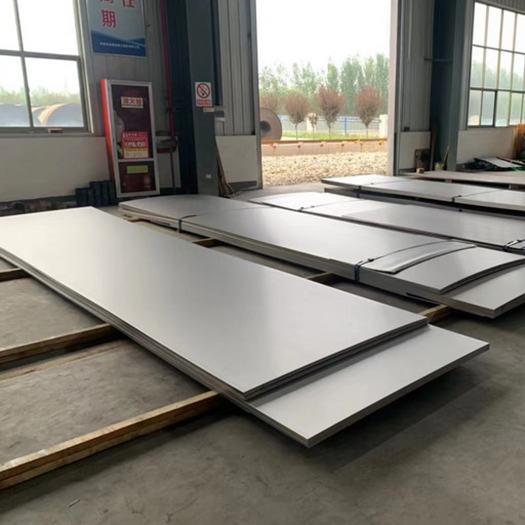

Hot rolled pure titanium plate

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Material Performance

1. Mechanical properties

: Good plasticity, tensile strength ≥ 400MPa, outstanding pressure and impact resistance, suitable for thick plate load-bearing conditions;

2. Corrosion resistance

: Long term resistance to seawater, brine, dilute acid and alkali, and saline wastewater, without pitting corrosion, crevice corrosion, and no precipitation of impurities;

3. Basic characteristics

: Density of 4.51g/cm ³, non-magnetic, stable low-temperature performance, suitable for argon arc welding and plasma welding, suitable for temperatures ranging from -50 ℃ to 300 ℃.

[ Process Structure ]

High temperature hot rolling refines the grain size of the plate, resulting in a uniform and dense internal structure, while avoiding porosity and interlayer defects; Vacuum annealing after rolling eliminates hot rolling stress and reduces the risk of processing cracking; The finished product is uniformly pickled to remove the high-temperature oxide layer on the surface, and the surface is flat without peeling; Full ultrasonic internal inspection, controllable thickness tolerance, stable bending, cutting, and welding processing performance.

[ Application Fields ]

1. Chemical equipment

: reaction kettle anti-corrosion lining plate, acid and alkali storage tank, thick walled titanium lining for evaporation equipment;

2. Seawater engineering

: load-bearing and anti-corrosion plates for seawater desalination, offshore platforms, and brine treatment equipment;

3. Environmental protection electroplating

: salt containing wastewater treatment tank, corrosion-resistant bottom and side plates of electroplating tank;

4. Metallurgical and light industry

: equipment for smelting under corrosive conditions, lining plates for acid pickling tanks;

5. Pressure vessels

: corrosion-resistant small pressure equipment cylinder, head and top plate substrate.
