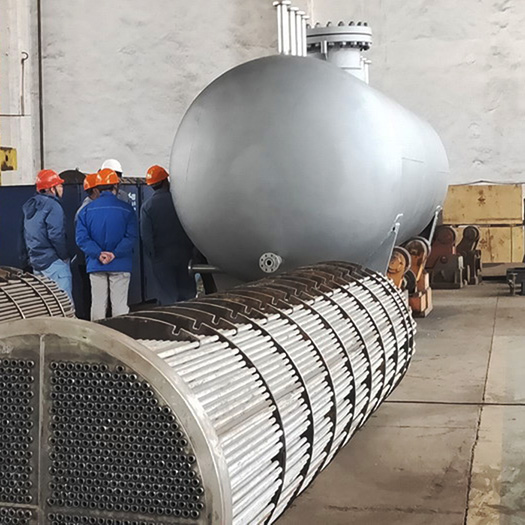

Titanium floating head tubular heat exchanger

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Supply status

Titanium tube and tubesheet are combined by expansion welding, with qualified weld detection, overall acid pickling and passivation, and matched with titanium flange, titanium gasket and titanium fastener.

[ Processing Technology ]

Blanking of titanium tube/Titanium Plate → drilling and grooving of tube sheet → tube bundle threading → tube expansion+argon arc welding → assembly of floating head assembly → NDT → water pressure and air tightness test → acid pickling and passivation.

[ Material Performance ]

TA2 pure titanium has extremely strong resistance to chloride ion corrosion, without pitting and perforation under seawater, brine and dilute acid conditions; Heat transfer and thermal conductivity are stable, and the corrosion resistance remains unchanged when the temperature difference between cold and hot medium changes greatly; The floating head structure releases thermal expansion and cold contraction stress, and the tube bundle is not easy to crack and leak; No metal ion precipitation, ensuring material purity, non-magnetic, suitable for high-purity chemical fluid heat exchange.

[ Process structure ]

Expansion welding composite process is adopted, titanium tube is closely connected with tube sheet, and medium crossflow is eliminated; The floating channel can pull out the tube bundle to facilitate the cleaning and maintenance of dirt inside and outside the tube; All-weld high-purity argon shielded welding, without oxide embrittlement layer; The shell can be made of carbon steel lined with titanium or full titanium; One by one water pressure and air tightness test for finished products, 100% NDT for welds, acid pickling and passivation of surface layer to extend the corrosion protection life of equipment.

[ Application field ]

1. Sea water desalination and ocean engineering

: special heat exchange equipment for sea water cooling and brine heat exchange;

2. Chemical anti-corrosion industry

: cold and heat exchanger for acid, alkali and chloride corrosive media;

3. Hydrometallurgy and electroplating industry

: extraction liquid and electroplating waste liquid cooling and heating heat exchanger;

4. New energy materials

: heat exchange and cooling equipment for corrosive electrolyte and high-purity chemicals;

5. Pickling environmental protection industry

: waste heat recovery of high-salt acidic wastewater, cooling and heat exchange unit.
