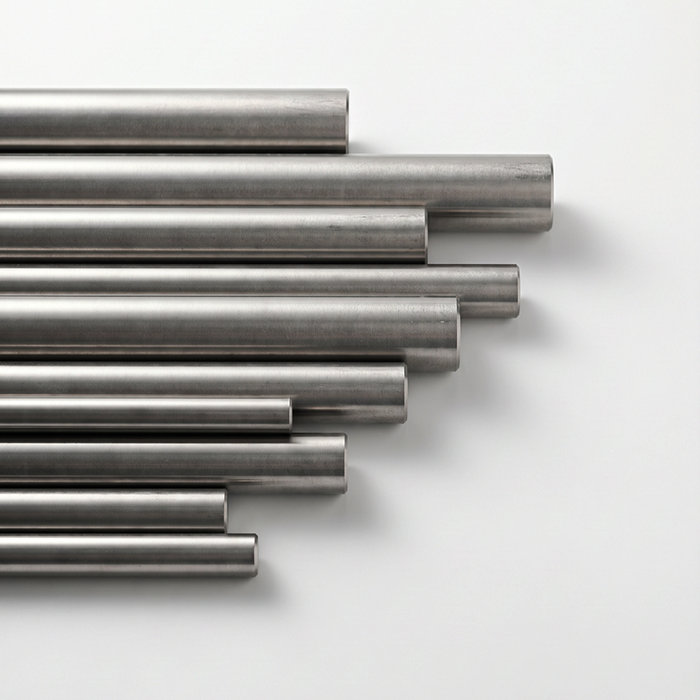

High temperature resistant forged titanium rod

Product Overview

Reviewed and maintained by the Engineering Team, Shaanxi Qianyi Tuoda Technology Co., Ltd.

Material Performance

1. High temperature resistance

: TC4 can be used for a long time at 400 ℃, while TA15/TA18 can be used for a long time at 450-500 ℃. It has excellent high-temperature tensile strength and creep resistance, and is not easily deformed or cracked in high-temperature alternating environments;

2. Mechanical properties

: Repeatedly forging and crushing coarse grains, overall impact resistance, fatigue resistance, and bearing capacity far higher than ordinary hot-rolled titanium rods;

3. Comprehensive characteristics

: Density of 4.51g/cm ³, lightweight, resistant to seawater and weak acid corrosion, non-magnetic, and will not precipitate impurities or contaminate the medium under high temperature conditions.

[ Process Structure ]

Adopting the upsetting and stretching multi-directional forging process, the internal looseness and segregation of the ingot are completely eliminated, and the material structure of the large-sized section is uniform; After forging, a specialized high-temperature homogeneous annealing is carried out to release residual stresses and avoid high-temperature use or machining deformation; Adequate machining allowance is reserved for forging blanks, which can achieve precise dimensions of the entire vehicle's outer circle; The finished product undergoes 100% ultrasonic non-destructive testing to identify internal microcracks, meeting the standards for high-temperature pressure vessels and aviation hot end components.

[ Application Fields ]

1. Aerospace hot end components

: engine mounts, high-temperature connecting rods, turbine peripheral load-bearing forgings;

2. High temperature heat treatment equipment

: heat-resistant pillars for vacuum furnaces, high-temperature fixtures, furnace load-bearing shafts;

3. Petrochemical high-temperature equipment

: high-temperature corrosion-resistant reaction kettle stirring shaft, high-temperature and high-pressure valve body blank;

4. Metallurgical thermal equipment

: high-temperature leaching furnace, load-bearing accessories for transporting salt containing high-temperature media;

5. New energy high-temperature equipment

: Lithium battery high-temperature sintering fixtures, corrosion-resistant high-temperature positioning structural components.
